How To Transform 3 Phase 220V Electricity Into A Single Phase?

There is always a means to adjust the maximum load that may be placed on an electrical installation. When you convert the electrical infrastructure from a three-phase system to a single-phase one, you can make this modification.

What Is Meant by the Term “Single-Phase Power”?

As the number of live wires in a circuit is what the phrases “three-phase” and “single-phase” refer to, a single-phase system will only have one, while a three-phase system would have three.

A two-wire, alternating current circuit is required for single-phase power, the kind of Electricity often found in houses throughout the United States. Only one of these cables carries electrical current, while the other is considered neutral.

The flow of electricity travels in both directions between the two. Alternating current is also used in the circuit for three-phase power, but instead of two or three wires, there are three to four of them. This kind of Electricity is often found in commercial structures.

The voltages used by single-phase and three-phase power solutions are distinct from one another. In most cases, 120 volts is necessary for single-phase Electricity.

Three-phrase may also utilize wires with a voltage of 120 volts for low-power loads, but it requires a voltage of around 208 volts for greater loads.

It is to your advantage to go from using three-phase power to using single-phase Electricity when you do not need a more excellent power supply. Single-phase Electricity, for instance, is used for low-horsepower appliances and residential heating and lighting loads.

How to Change 3-Phase Electrical Current to Single-Phase Current

Converting Electricity from three phases to a single step may be accomplished in many ways. Be sure to give some thought to your existing balancing requirements and a few primary safety considerations before you start.

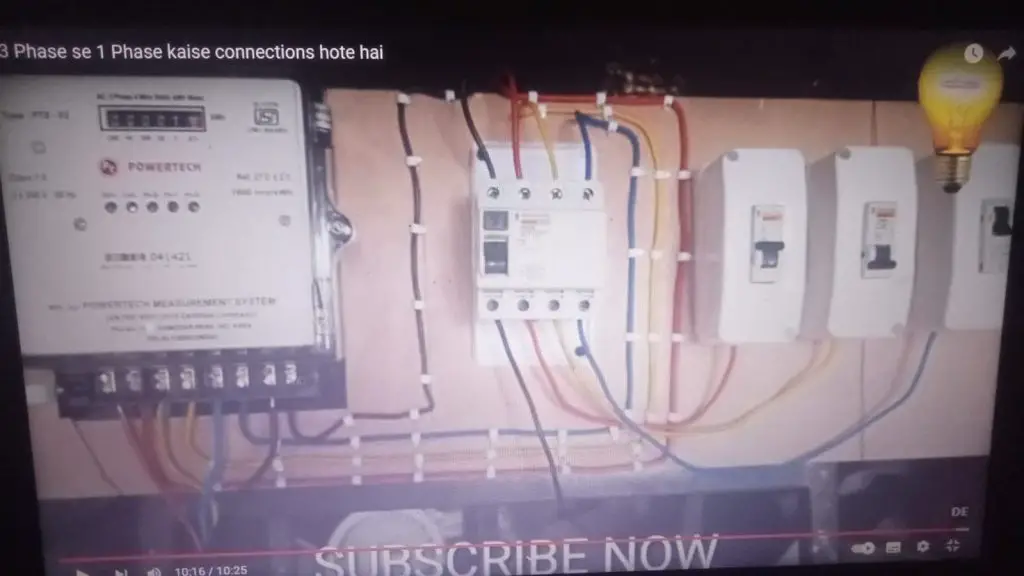

https://youtu.be/pxnM9QLmWc4?si=rMvCrvlcYQmFS_7D

Remember that you are dealing with Electricity, so regardless of your approach, you should ensure that the main breaker is turned off, that you use tools with rubber handles, and that you wear gloves made of high-voltage rubber.

Do the following to change your system to operate on a single phase.

Make use of a neutral wire: Although this approach may not be as exact as some of the others, it is possible to convert the system by making use of a neutral wire and disregarding the other two phases that make up the three-phase supply line.

When a supply is not sensitive and does not demand high levels of precision, this choice is the one that will function the best.

https://www.smarthomelivinginsider.com/how-many-electricity-consumed-with-usage-of-smart-plugs/

Utilize a phase converter: A phase converter may be linked directly to whatever motor you are attempting to convert. A phase converter can convert three-phase motors to single-phase motors.

After that, you will connect two wires from the motor to the converter, and after that, you will run two wires from the converter to your power source. After that, to convert the system, you must connect the inputs to the outputs using wires with the ends stripped off.

Utilize the open delta transformer: If you have a more robust system, you can quickly convert it using the available delta transfer method. When the power supply being restored is more than 5 kVA, this approach performs the best.

Utilize transformers of the Le-Blanc type Le-Blanc transfer is another way that may be used for more powerful systems. This system can reliably convert voltages and currents over 5 kVA and 400 volts.

How to Change a 3-Phase 220v System to a Single-Phase System

1. Turning off the Electricity

Before continuing with any procedures involving Electricity, turning off the power supply is always the first and most crucial step that must be taken. Even if you are attempting to find out how to connect a 220v socket that has three wires.

Power may be cut off at either the local circuit breaker or the main circuit board, depending on which is most convenient. If the compliance has a local circuit breaker, you must accurately identify the one that controls the flow of Electricity to the outlet or compliance.

An option that offers a higher level of protection is turning off the Electricity at the main panel. To turn off the specific circuit breaker, flick its switch.

Check the LED indicator to ensure no energy is coming from the outlet.If there are no visible symptoms, you may use a volt meter or an ammeter to investigate the circuit.

2. Selecting the Most Appropriate Method for the Conversion

A few different approaches may be used to convert three-phase Electricity into single-phase power. Before getting started, consider your existing balancing requirements and a few primary safety considerations. Let’s look at a couple other approaches:

Utilizing a Neutral Wire is the best option when a supply isn’t sensitive or doesn’t need a high degree of accuracy because of its use. Utilization of a Phase Converter To convert the system, a phase converter may be hardwired directly to compliance.

Utilizing the Open-Delta Transformer: If you can access a more potent piece of machinery, you can quickly transform it using the Open-Delta transfer.

It is up to the user to ensure that his essential use case is correctly selected since this determines which approach would be appropriate for the system’s level of compliance.

3. Employing the Use of a Neutral Wire

In situations where you do not need a high degree of precision in converting from three phases to a single stage, this approach is strongly recommended since it is the easiest way to accomplish it. It does not need any specific measures.

Instructions for Making Use of a Neutral Wire

Pick only one wire to connect to each of the three phases.

Pick the wire that will serve as the neutral for your connection.

You need just connect the wire for the phase you’ve selected and the wire for the neutral to the terminal for your compliance.

4. Implementing the Use of a Phase Converter Unit

If you consult an expert, they will almost certainly advise you to use a phase converter as an alternative to the neutral wire. This tactic seems more successful when generating an authentic conversation than the impartial wire technique.

Procedures to Follow When Utilizing a Phase Converter

Connect the compliance to the converter using two separate wires.

Once again, connect your power source to the converter using two separate wires.

Using the necessary tools, strip the insulation from the ends of two wires.

To change the system’s configuration, connect the inputs to the outputs.

However, for this strategy to be helpful, the Electricity used must be less than 5 KVA. Utilizing a different method would be preferable to achieve more power.

5. Using the Open Delta Transformer

If the system being converted has a VA rating of more than 5kVA, then you should utilize this procedure. The voltage from a three-phase supply is reduced to a single phase using an open delta connection transformer comprising two single-phase transformers.

Conclusion

Converting from three-phase to single-phase power may be required in certain conditions. For instance, if you wish to use Electricity for household reasons, you will want a system that operates on a single phase. You can do this by following the procedures that have been given above.

This post will review all the essential processes required to convert 3 phases to a single phase 220v. Everyone will find converting from three-phase to single-phase to be straightforward and uncomplicated if they follow the step-by-step instructions in this article.
